NC Automatic Sheet Feeder – Automatic Sheet Feeding Machine

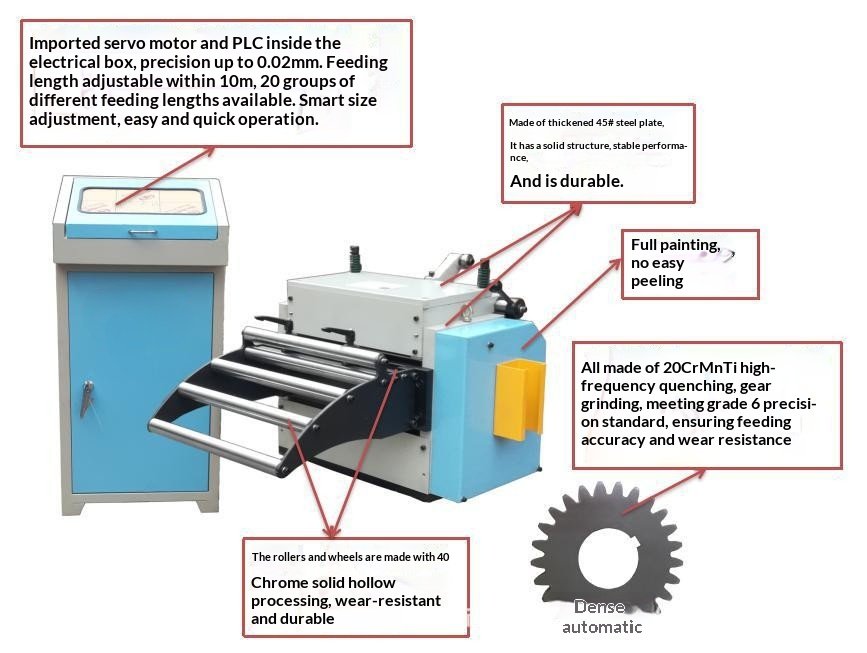

Genry Tech NC automatic sheet feeder is a high-precision feeding system designed to work with hydraulic press brake and shearing machine for automatic sheet metal feeding.
Product Features
- High Precision: Feeding accuracy ±0.05mm
- High Efficiency: 3-5 times faster than manual
- Touch Screen Control
- Adjustable feeding width & thickness
- Compatible with most press brakes & shears
Technical Specifications
| Model | Max Feeding Width | Max Thickness | Speed | Accuracy |
|---|---|---|---|---|
| GTNF-1500 | 1500mm | 6mm | 20m/min | ±0.05mm |
| GTNF-2500 | 2500mm | 8mm | 25m/min | ±0.05mm |
